TFT Bar Coaters for Precise Testing of Coating Thickness
What are Bar coaters:
Wire bar coaters are basically a tool meant to ensure the uniformity and thickness of a thick coating over thin surfaces during various applications.
It is mainly used to coat the thin, breakage-prone as well as flexible surfaces like such as paper, foils, cardboard, test leather and textiles. We at TFT offer a wide range of bar coaters made up of stainless steel and it can be used for even the thinnest of the material.
Introduction to TFT Bar Coaters:
Our bar carters are extensively purchased by every pioneer as well as newbies to meet their need of a coating. Not one or two, but numerous industries blindly rely upon our products and we always aim to serve better than before.
We offer the bar-coaters made up of 100% stainless steel wires of various diameters. You can get a huge variety in the size and weight of the wires under one roof.
Our products are manufactured and tested in our in-house labs to double-check the quality and effectiveness of the product. From inks, paints, lacquers, adhesives to other fluids, our coaters work effortlessly for every coating materials to deposit predetermined thickness of layers on various substrates.
Features of TFT bar coaters:
Our Bar Coaters are the perfect way to avail the uniformity of the thickness of very thin and fines films/ layers at the economical prices:
- 1. The bars and wires are made up of best quality stainless steel
- 2. Works effectively for extremely thin films, such as foils and paper coating tests
- 3. Suits best with all sorts of flexible material e.g. paper, cardboard, test charts, foils, leather, textiles, etc.
- 4. Get the maximum attainable wet thickness stamped on the ends of bars
- 5. Allows you to perform the concurrent drawdown of multiple samples at a time.
Uses:
The bar coaters that we design are highly suitable for these following industries:
- 1. For manufacturers of liquid inks to perform ink and shade strength testing
- 2. For Rotogravure and Flexo Printers to perform ink testing & surface costing
- 3. For Metal decorating, surface coating and Picture varnish producers
- 4. For checking Coatings and Varnishability of Coated Paper and Board by Paper and Boards Mills
- 5. For the manufacturers of Paint, Resins, Dyes, Pigment and Lacquers, Adhesives.
- 6. For Photographic Paper Cosmetics and Ceramic Colours
- 7. For testing of color, shades, and prints by textile industries
- 8. For performing the drawdowns on numerous substrates namely plastic films, paperboard, metal plates, foil, metalized films, and textiles, etc
Applications of Bar coaters:
Our bar coaters are best to uniformly apply:
- ✓ Adhesives
- ✓ Metallic Powders
- ✓ Oils
- ✓ Paper
- ✓ Cellulose
- ✓ Driers
- ✓ Cosmetics
- ✓ Emulsions
- ✓ Plastics
- ✓ Printing inks
- ✓ Ceramic colors
- ✓ And more
The Range of bar coaters:

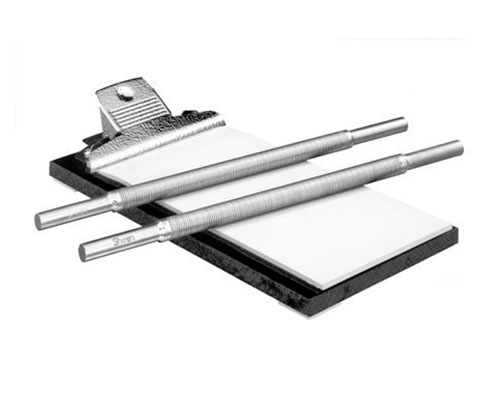

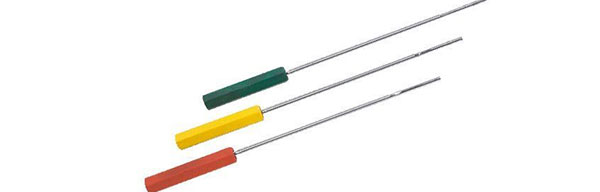

Wire Bar Coaters:
The Wire bar coaters are best to work with the application of inks and coatings, on the most flexible materials like paper, card, textiles, leather, etc. So, they suit multiple industries to satisfy their coating needs.
The coating thickness is determined by the groove are between the coils and wires. This ensures the smooth and even application and thickness of the material. Next, the drawdown is accurately controlled by the Impression beds that hold the substrate material.
Highlights of Wire bar coaters:
- 1. As the coaters are made up of the best material i.e. stainless steel.
- 2. These applicators make it easy to perform the coatings of ink, adhesive, paint, and varnish, etc. on the uniformly flat and plain surfaces.
- 3. The best results can be attained from multi-layer coatings and parallel testing.
- 4. The wet film thickness is available for: 10, 15,25, 35, 50, 75, 100, 150, and 200 microns.

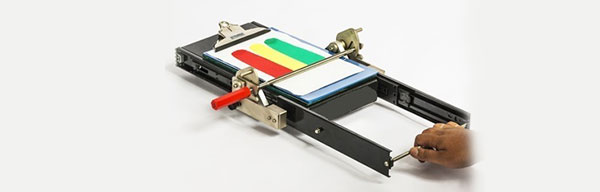

K Hand Bar coaters:
The K Hand Bar coaters are highly efficient to perform the coating testing for thickness and uniformity. Made up of stainless steel, these coasters are available in a diameter ranging from 10 microns to 100 microns. Every piece of the product consists of numbered and well-fitted handles to identify with ease.
The impression beds included in these coaters are made up of synthetic rubber surface that duly controls the shore hardness, and a clip to clutch the substrates in the accurate state.
The highlights of K Hand coaters are:
- 1. Consist of stainless wire & stainless steel rods
- 2. The impression beds are made up of synthetic rubber for perfect repetitions
- 3. You can apply multiple coating at one time
- 4. It is affordable and user-friendly
- 5. The web film variable thickness can due to the wide range of diameters i,e. 10 microns to 100 microns
Specifications of Product:
| Material: | Stainless steel |
|---|---|
| Total width: | 440 mm |
| Film width: | 320 mm |
| Available in: | sizes from 4 to 200 μm |
| Straightness: | < 50 μm |
Models of bar coaters:
Bar coater Model available for different wet thickness:
| MODEL TYPE | Wet Film Thickness (μm) |
| UNIVERSAL TYPE: | Wet Film Width: 80 mm |
| BGD 206/1 | 5, 10, 15, 20 |
| BGD 206/2 | 25, 50, 75, 100 |
| BGD 206/3 | 50, 100, 150, 200 |
| BGD 206/4 | 30, 60, 90, 120 |
| BGD 206/5 | 100, 200, 300, 400 |
| BGD 206/6 | 50, 75, 100, 150 |
| LONG TYPE | Wet FIlm Thickness (μm) |
| Wet Film Width : 160 mm | |
| Total Length : 190 mm | |
| BGD 205/2 | 25, 50, 75, 100 |
| BGD 205/3 | 50, 100, 150, 200 |
| BGD 205/4 | 30, 60, 90, 120 |
| BGD 205/5 | 100, 200, 300, 400 |
| BGD 205/6 | 50, 75, 100, 150 |
| BGD 205/7 | 100, 150, 200, 250 |
| BGD 205/8 | 250, 500, 750, 1000 |
Get Your Best Quote now:
We guarantee satisfaction to our clients. Get in touch with TFT Industries to get the best quote for bar coaters of your choice. Whether you are looking for an already designed model or want to order a customized product, we promise to provide maximum quality at the best prices that you won’t get anywhere else. Moreover, we perform multiple tests before rendering the product to the market or our clients. So, give us a try and experience the best service.
